PRODUCT

PYTHON550F-B3

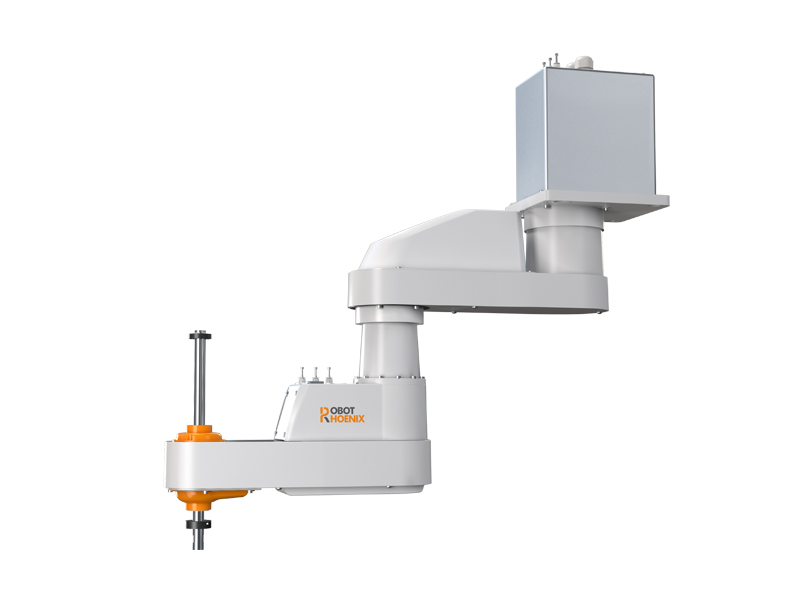

Python 550F-B3 SCARA Robot is a 4-axis robot with a maximum payload of 3kg. It has superior precision, speed, linearity and verticality performance. It can quickly and accurately complete operations such as gluing, assembly, loading, shifting, packaging and so on.

Repositioning accuracy (Joint 1/2 , Joint 3 , Joint 4 )

±0.02mm / ±0.01mm / ±0.01°

Load (Rated / Max)

1kg / 3kg

Working Range (Working radius / Z-axis trajectory)

550mm / 130mm (clean room 100mm)

Rated power

1.4KW

Z-axis diameter

Mounting Type

Ceiling Mounting

Weight

20kg (excl. cable & rack)

Protection grade

IP54

More inteligent, flexible and adjustable.

Cooperative with independently developed servo and visual system, integrate peripheral systems, adapt to various application scenarios under complex working conditions.

It combines the characteristics of compact design and lightweight , with extremely high motion speed nd positioning accuracy.

FAQs

Do You Have Any Questions
About PYTHON550F-B3

What is the PYTHON550F-B3 SCARA Robot designed for?

The PYTHON550F-B3 is a high-performance SCARA robot primarily designed for tasks requiring precision and speed, such as assembly, packaging, loading, and other automation processes. Its 4-axis design allows for fast and accurate operations in various industrial applications.

What are the key specifications of the PYTHON550F-B3?

The PYTHON550F-B3 features a high maximum operating speed and excellent positioning accuracy. It supports a range of interfaces, including Ethernet, USB, and RS232/RS485, making it highly versatile for integration into different systems.

What is the payload capacity of the PYTHON550F-B3?

This robot is capable of handling a maximum payload of up to 6 kg, with a rated payload of 3 kg. This makes it suitable for handling medium-weight components in various manufacturing processes.

How is the PYTHON550F-B3 installed?

The PYTHON550F-B3 is designed for table installation, making it easy to integrate into existing production lines or workstations.

What industries is the PYTHON550F-B3 suitable for?

The PYTHON550F-B3 is ideal for industries such as electronics, automotive, pharmaceuticals, and general manufacturing, where precision and efficiency are critical.

What are the connectivity options available on the PYTHON550F-B3?

The robot comes with multiple connectivity options, including Ethernet, USB, and EtherCAT, allowing for flexible and robust communication with various control systems.

How does the PYTHON550F-B3 ensure safety and reliability?

The robot is equipped with advanced safety features and robust construction, ensuring reliable performance in demanding industrial environments.
